PES Capsule Filter Cartridge with High Flow Rate and Long Service Life

PES capsule filter cartridge are made of asymmetric polyethersulfone membrane. It has multiple volume options, provides various removal ratings, and has multiple holder and adapter options to choose from. It is quick to install and easy to operate. The internal filter cartridge can be configured based on the characteristics of the filtered liquid, and it has wide chemical compatibility, high flow rate, low extractables, and low protein binding. The binding ability of polyethersulfone makes it widely used in food and beverage and biopharmaceutical industries.

Various types of white PES capsule filter cartridge
  • Basic Parameters
  • Product Features
  • Ordering Information
  • Typical Applications
Basic Parameters
Filter Membrane PES
Support / Drainage PP
Core / Cage / End Cap PP
Capsule Shell PP
Removal Ratings 0.20 μm, 0.30 μm, 0.45 μm, 0.65 μm, 1.0 μm, 3.0 μm, 5.0 μm, 10.0 μm, 20.0 μm, 30.0 μm, 50.0 μm, 70.0 μm
Filtration Area 500 cm2 / 1000 cm2 / 2100 cm2
2000 cm2 / 6000 cm2 / 12000 cm2 / 18000 cm2
Inner Filter Tube Diameter 56 mm, 68 mm
Outer Shell Diameter 72±2 mm, 108±2 mm
Bio-Compatibility Meet USP <87> in vitro cytotoxicity test
Meet the criteria of the USP <88> biological reactivity test for class VI-121 °C plastics
Endotoxins < 0.25 EU/ml
Product Features
  • Asymmetric polyethersulfone membrane
  • Very low protein non-specific binding
  • Hot-melt welding without any adhesive
  • Wide variety of cages and adaptors to choose from
Order Information

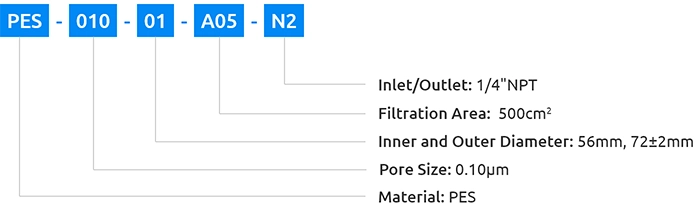

PES capsule filter cartridge ordering information image
Order Information List
Material Pore Size Inner and Outer Diameter Filtration Area Inlet / Outlet
PES 010 = 0.10 μm
020 = 0.20 μm
045 = 0.45 μm
065 = 0.65 μm
080 = 0.80 μm
100 = 1.0 μm
300 = 3.0 μm
500 = 5.0 μm
H10 = 10.0 μm		 01 = 56 mm, 72±2 mm A05 = 500 cm2 N2 = 1/4" NPT
N3 = 3/8" NPT
N4 = 1/2" NPT
NF2 = 1/4" FNPT
NF3 = 3/8" FNPT
NF4 = 1/2" FNPT
H2M = 1/4" Multiple hosebarb
H3M = 3/8" Multiple hosebarb
H3 = 3/8" Hosebarb
H4 = 1/2" Hosebarb
HC = 1/4"-3/8" Stepped hosebarb
TCA = 1-1/2" Tri-clamp & 1" Tri-clamp (50.5 mm)
TCB = 1/2" Tri-clamp & 3/4" Tri-clamp (25.4 mm)
A10 = 1000 cm2
A21 = 2100 cm2
02 = 68 mm, 108±2 mm A20 = 2000 cm2 TCA = 1-1/2" Tri-clamp
A60 = 6000 cm2
A120 = 12000 cm2
A180 = 18000 cm2
Typical Applications
  • Sterilizing filtration of water for injection, cleaning solution, purified water, and deionized water
  • Sterilizing filtration of large infusion, API, buffer solutions, eye drops, disinfectants, etc.
  • Sterilizing filtration of vaccines, serum, biological products, antibiotic water-based feed solutions, etc.
  • Red wine, beer, juice, pure water filtration
Pharmaceutical production line
Biopharmaceuticals
Beer production line
Food and Beverage
Chip detail
Microelectronics
