NF Membrane Elements with Precise Molecular Weight Cut-off And High Flux

The molecular weight cut-off of NF membranes is between RO membranes and UF membranes, approximately 200-800 daltons. Retention characteristics: preferential retention of divalent and multivalent anions, and the retention rate of monovalent ions is related to the concentration and composition of the solution. NF is generally used to remove organic matter and pigments from surface water, hardness from groundwater, and partially remove dissolved salts. It is also used for substance extraction and concentration in food and biopharmaceuticals production. The operating pressure of NF membranes is generally 3.5-30 bar.

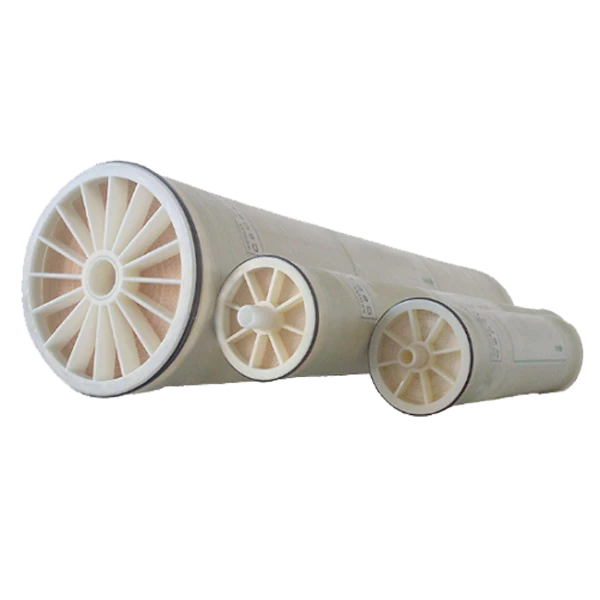

NF membrane elements on a white background
  • Basic Parameters
  • Product Features
  • Ordering Information
  • Typical Applications
Basic Parameters
Supporting Net Polyester
Interlayer Microporous polyether sulfone
Top Surface Blocking Layer Ultra-thin polyamide
Typical Operating Pressure 3.5-30 bar
Retained Molecular Weight Approximately 200-800 daltons
Nanofiltration Membrane Material: Polyamide, Sulfonated polyether sulfone, Sulfonated polyethersulfone.
Recommended Operating Pressure: 40-200 psi (3.0-14.0 bar)
Maximum Operating Pressure 600 psi (41 bar)
Operating Temperature Range: 35-131 °F (2-45 °C)
Continuous Operating pH Range (25 °C): 2.0-11.0
Online Cleaning pH Range (25 °C): 1.0-12.0
Maximum Feed Flow Rate 86 GPM (F), 118 GPM (G), 137 GPM (H), 155 GPM (I)
Maximum Pressure Drop 13 psi (0.9 bar)
Maximum Feed SDI (15 minutes): 5
Inlet Residual Chlorine Concentration: < 0.1 ppm
Product Features
  • Imported high-quality membrane material, with large flux and high stability;
  • Accurate molecular weight cut-off;
  • No dead-end design, not easily contaminated;
  • Easy replacement of membrane components;
  • Various specifications of membrane elements are available for selection;
  • High membrane core packing density, low cost per unit membrane area.
Order Information

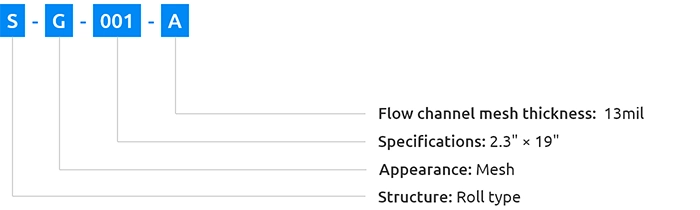

NF membrane component ordering information image
Order Information List
Structure Appearance Specifications Flow channel mesh thickness
S = Roll type G = Mesh 001 = 2.3" × 19"
002 = 2.5" × 40"
003 =3.8" × 38"
004= 6.3" × 38"
005 = 8.0" × 40"
A = 13 mil
B = 17 mil
C = 20 mil
D = 26 mil
E = 28 mil
F = 31 mil
G = 46 mil
H = 65 mil
l = 80 mil
J = 120 mil
Note: 1 mil = 0.0254 mm
Typical Applications
  • Water treatment: Used to remove suspended solids, colloidal substances, heavy metal ions, dissolved organic matter, etc. from water.
  • Food and beverage processing: Used for concentration and desalination of juices, dairy products, etc.
  • Biopharmaceuticals: Used for concentration and purification of large biomolecules such as proteins and enzymes.
  • Chemical industry: Used for solvent recovery, wastewater treatment, separation and purification, etc.
