Ceramic Membranes Have Good Acid, Alkali, High Temperature Resistance

Inorganic tubular ceramic membranes are precision ceramic filtration materials with a porous structure formed by high-temperature sintering of alumina, titanium dioxide, zirconia, etc. The porous support layer, transition layer, and microporous membrane layer are asymmetrically distributed, and the filtration accuracy covers microfiltration, ultrafiltration, and nanofiltration. Ceramic membrane filtration is a form of "cross-flow filtration" fluid separation process: the raw material liquid flows at high speed inside the membrane tube, and under pressure, the clarified permeate containing small molecular components passes through the membrane in a direction perpendicular to it, while the turbid concentrate containing large molecular components is retained by the membrane, thereby achieving the purpose of fluid separation, concentration, and purification.

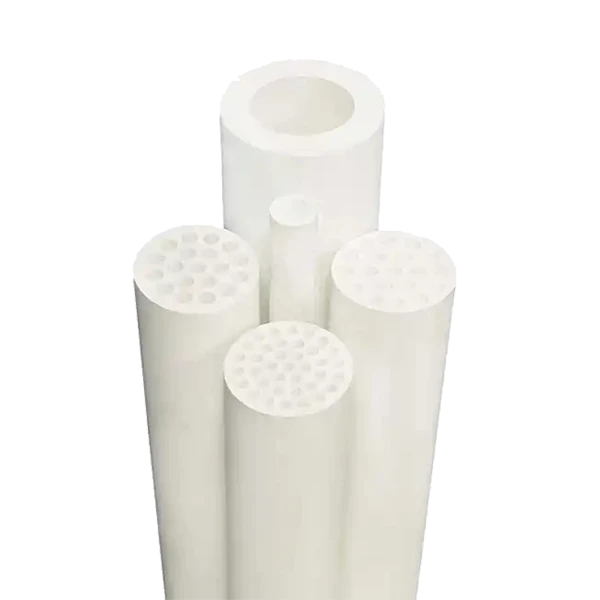

Ceramic membranes with different pore sizes
  • Basic Parameters
  • Common Specifications
  • Section Geometry
  • Product Features
  • Typical Applications
Basic Parameters
Project Parameter
Support Material a-Al2O3
Membrane Material a-Al2O3, ZrO2, TIO2, etc., mixed and sintered
Membrane Pore Size (μm) 500, 200, 100, 50, 30, 10, 5
Applicable pH Range 0-14
Membrane Burst Pressure (MPa) Outer diameter φ25 mm membrane tube ≥ 4 Mpa;
Outer diameter φ30 mm membrane tube ≥ 6 Mpa;
Outer diameter φ40 mm membrane tube ≥ 8 Mpa;
Organic Solvent Insensitive
Operating Temperature < 350 °C
Operating Pressure (Mpa) Outer diameter φ25 mm membrane tube ≤ 1
Outer diameter φ30 mm membrane tube ≤ 1
Outer diameter φ40 mm membrane tube ≤ 1.5
Pure Water Flux (m³.m⁻².h⁻¹) 500 nm ≥ 2.0
100 nm ≥ 1.0
50 nm ≥ 0.5
30 nm ≥ 0.3
10 nm ≥ 0.1
Common Specifications
Common Specifications
Product Model Number of Pores (pcs) Pore Diameter (mm) Product Length (mm) Membrane Area (m²) Aperture Size (μm)
CM7-60 7 6.0 1178 0.155 500
200
100
50
30
10
5
CM8-48 8 4.8 1178 0.210
CM9-50 9 5.0 1178 0.178
CM19-35 19 3.5 1178 0.246
CM19-40 19 4.0 1200 0.287
CM19-60 19 6.0 1200 0.430
CM23-36 23 3.6 1178 0.300
CM31-27 31 2.7 1178 0.310
CM37-30 37 3.0 1200 0.418
CM37-38 37 3.8 1200 0.530
CM61-22 61 2.2 1200 0.506
The table shows the common specifications. If you need, customization is available.
Section Geometry

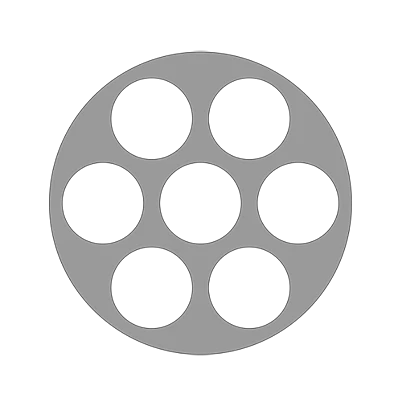

  • Cross section geometry of 7-hole ceramic membrane

    7 holes

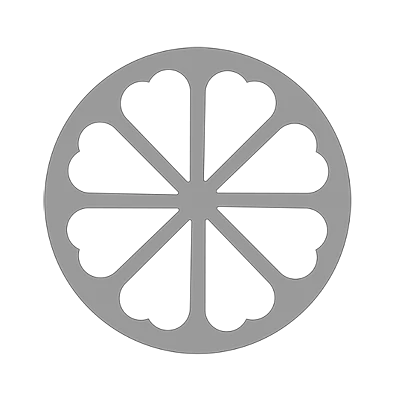

  • Cross section geometry of 8-hole ceramic membrane

    8 holes

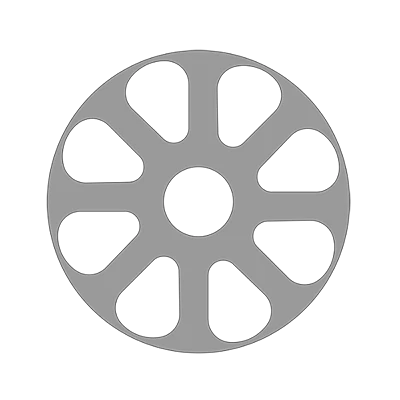

  • Cross section geometry of 9-hole ceramic membrane

    9 holes

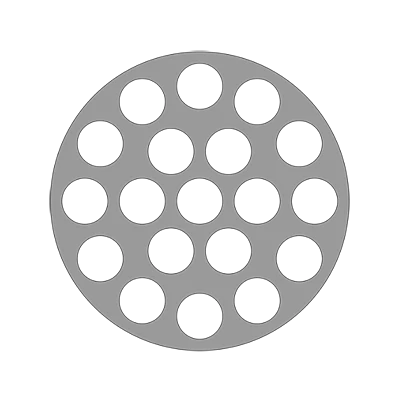

  • Cross section geometry of 19-hole ceramic membrane

    19 holes

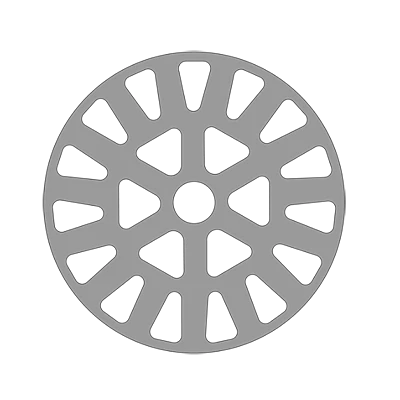

  • Cross section geometry of 23-hole ceramic membrane

    23 holes

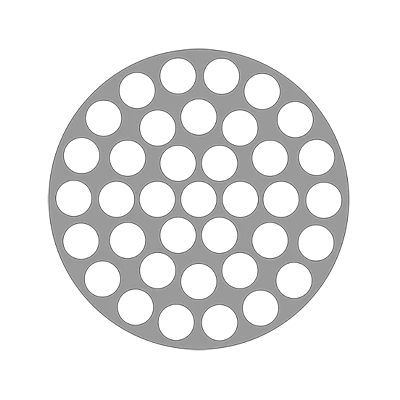

  • Cross section geometry of 31-hole ceramic membrane

    31 holes

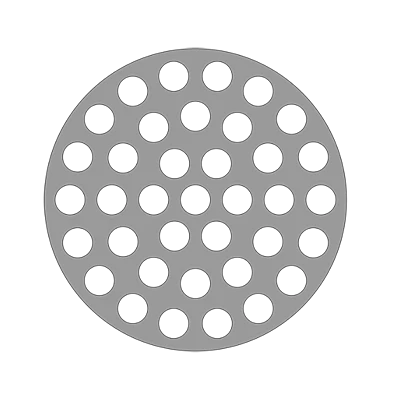

  • Cross section geometry of 37-hole ceramic membrane

    37 holes

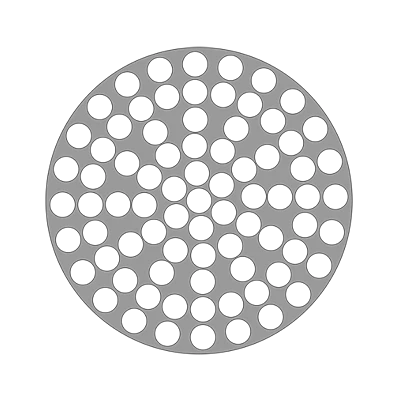

  • Cross section geometry of 61-hole ceramic membrane

    61 holes

Product Features
  • Good chemical stability, acid resistance, alkali resistance, and oxidation resistance;
  • Resistant to organic solvents and high temperatures;
  • High mechanical strength and good abrasion resistance;
  • Long service life and large processing capacity;
  • Narrow pore size distribution, extremely high separation accuracy, can achieve nanoscale filtration;
  • Easy to clean, can be sterilized online with chemicals or high temperatures, and can be backflushed.
Typical Applications
  • Water treatment: Its microporous structure can effectively filter small particles, bacteria, viruses, and organic substances.
  • Biopharmaceuticals: Can efficiently separate and filter blood, cell culture media, etc.
  • Food and Beverage: Used for concentration, separation, and purification of juices, dairy products, etc.
  • Chemical Industry: Used for separation and filtration of chemical substances to ensure product purity and quality.
  • Energy Field: Used for hydrogen separation and gas purification in fuel cell applications.
  • Electronics Industry: Used for filtration and separation processes of ultrapure water and solvents for electronic components.
